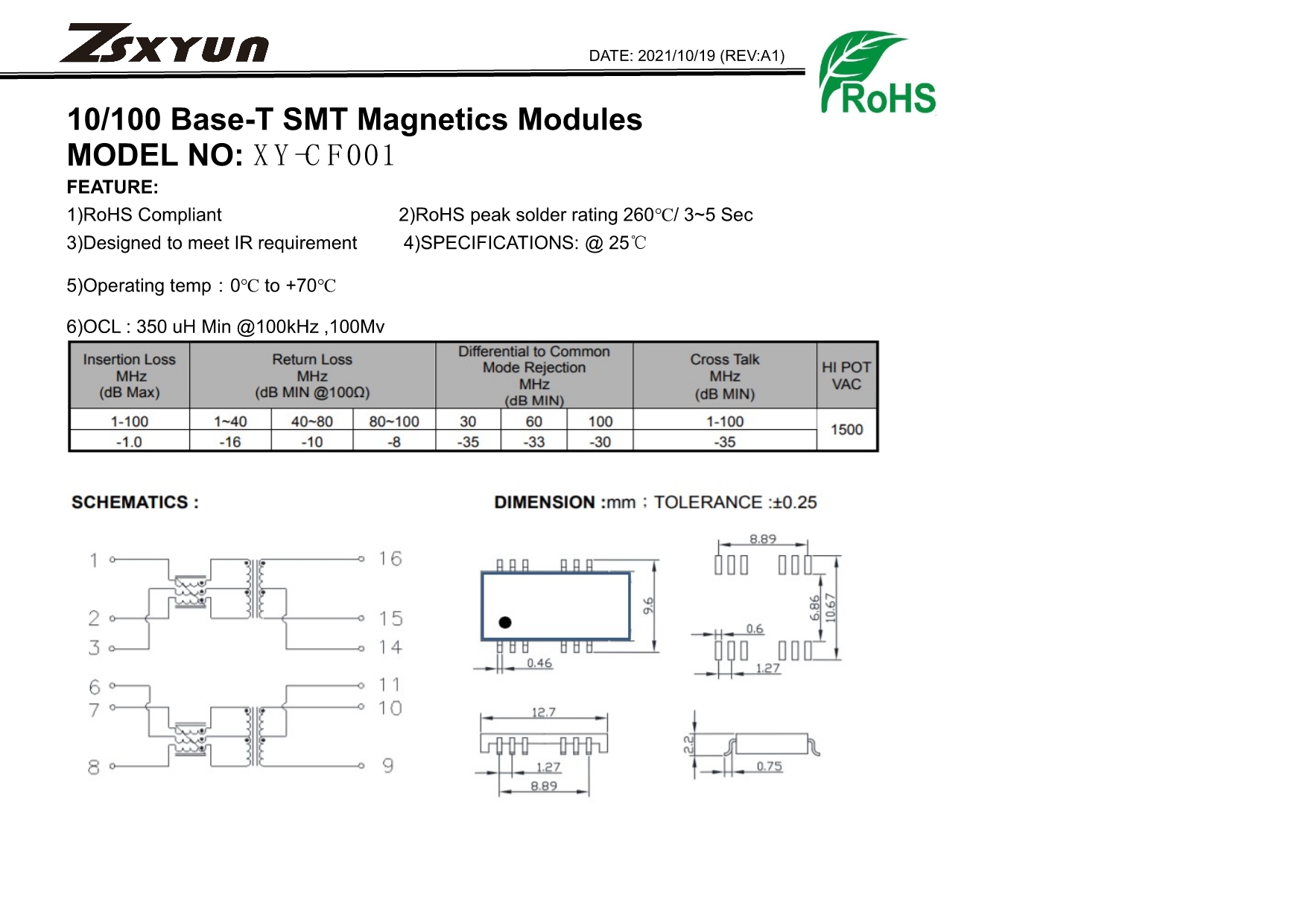

XY-CF001
1. This product is mainly used in high-performance digital switches, SDH/ATM transmission equipment, ISDN, ADSL, VDSL integrated service digital equipment, FILT optical fiber loop equipment, Ethernet switches...etc.
2. The role of network transformer:
1) The mainly function is signal transmission, impedance matching, waveform repair, signal clutter suppression and high
voltage isolation..etc. 2) It plays two main roles in a network interface card: *Transmit data, it filters the differential signal sent by the
PHY with a differential-mode coupled coil coupling filter to enhance the signal, and couples it to different circuits
through the conversion of the electromagnetic field and then connect the other end of the network cable.*It can isolate
the different levels between different network devices connected by the network cable, so as to prevent different voltages
from being transmitted through the network cable and then damage the equipment. In addition, data mercury can also play a
certain role in lightning protection for the equipment.
